XG2431 - Calibration ICM and Settings

[James Freeman]

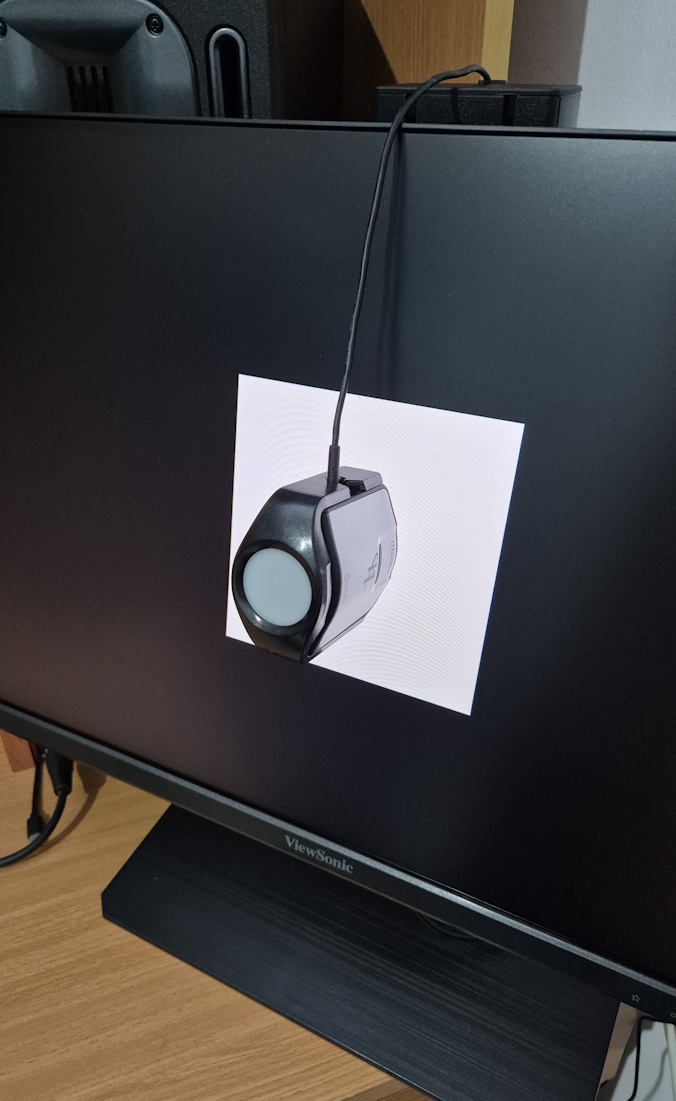

Calibrated with i1 Display Pro + ArgyllCMS + DisplayCAL for 6500k.
-


-

First set as following:
Color Temperature -> User Color
Red 98
Green 95
Blue 100

Then apply ICM Profile in Novideo_sRGB to clamp Gamut and Curve correction.
-

ViewSonic XG2431 21.10.2024.icm.zip

(11.82 KiB) Downloaded 157 times

-

CRU Timing and Strobe Utility settings for 60Hz.
QFT is created with 180Hz using "Native PC" Timing, then changed to 60Hz using Vertical Total Calculator.

Personally all my monitors are calibrated for 60nit which is equal to Strobe Pulse Width of 10.

-

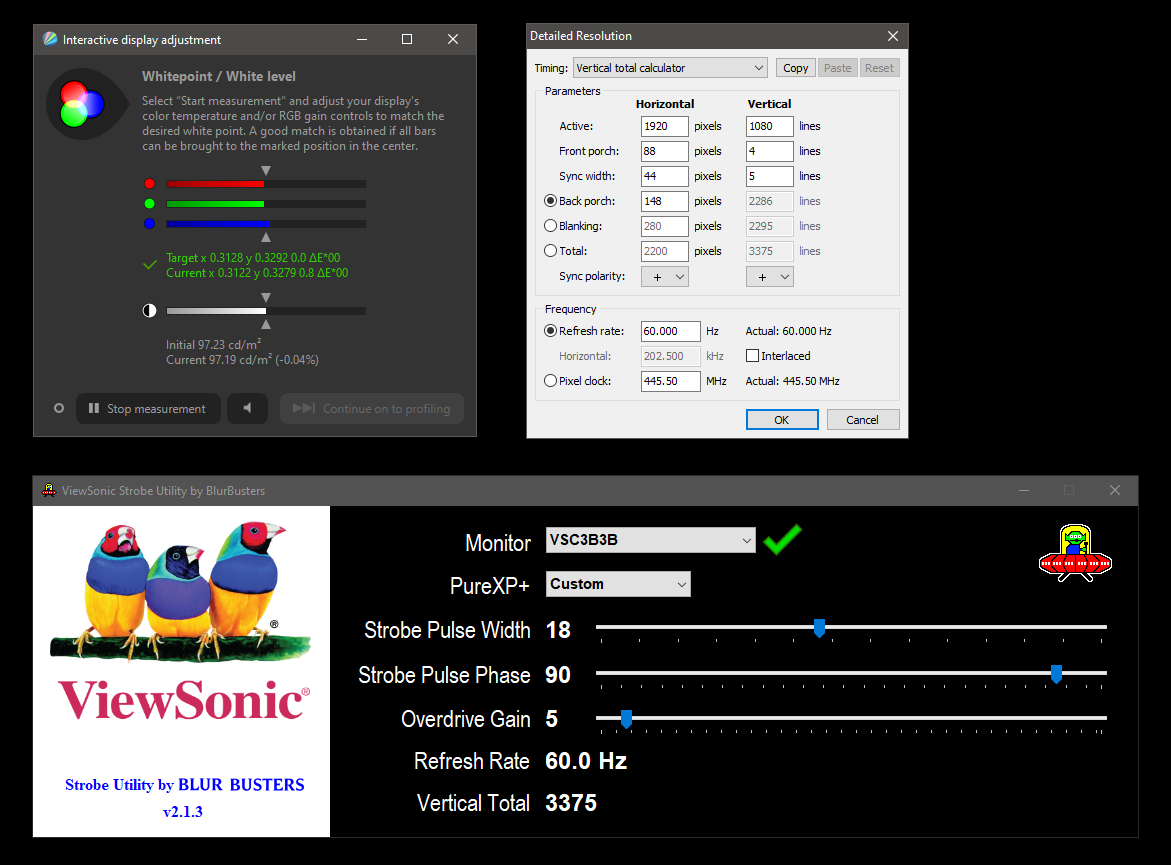

White Point 6500k 100nit.png (125.54 KiB) Viewed 2586 times

[James Freeman]

novideo srgb.jpg (96.31 KiB) Viewed 2585 times



[James Freeman]

Very hard to capture with a phone.
-



[James Freeman]

Using the ICC profile I've shared in Novideo-sRGB, black shades are nice and even without crushing.
Again, extremely hard to photograph with a phone.
-


-

Can't say my sample has any edge light bleeding, just the typical IPS glow.
-

IPS glow.jpg (145.65 KiB) Viewed 2561 times

[Discorz]

Nice!

I've tested whole range and listed all the optimal settings in a spreadsheet. It's from the review that never got finished. If anyone is interested here ya go:

XG2431 Strobe Utility Optimal Settings Spreadsheet | HTML View

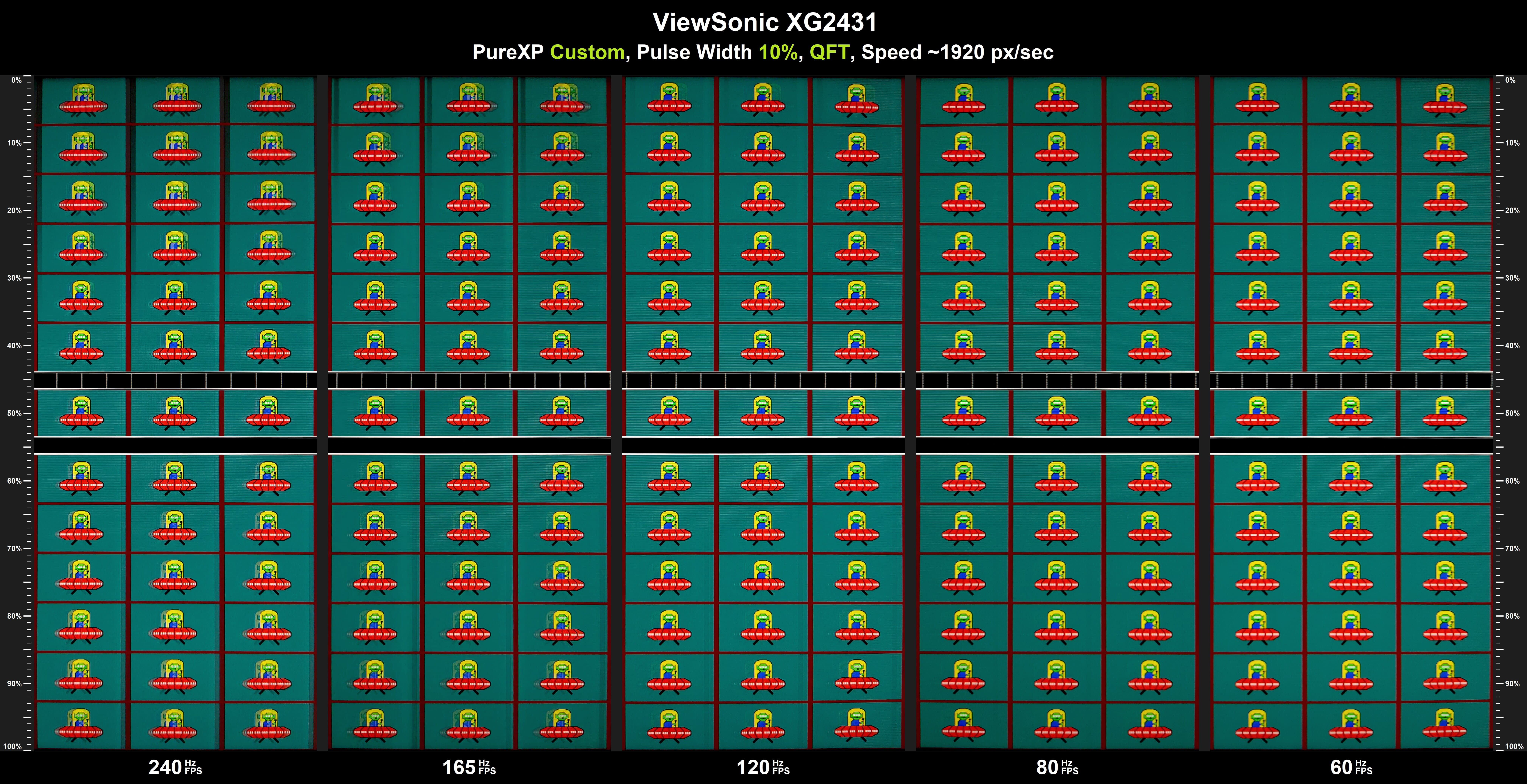

After QFT

Crosstalk QFT - Pulse Width 10%.jpg (2.48 MiB) Viewed 2484 times

Before QFT (out-of-the-box)

Crosstalk Default - Pulse Width 10%.jpg (1.52 MiB) Viewed 2484 times

Images are a bit compressed but it's fine for demonstrating differences in top-bottom crosstalk. Please view in full resolution.

*For the purposes of this test special permission was granted by Blur Busters to Discorz to use the UFO in a non-Blur Busters test program. The UFO is a trademark of Blur Busters.
